Datamax DMX-800 Thermal Barcode Label Printer Incl rewinder

Categorie

Computers en Software

Printers

Kenmerken

Conditie:Gebruikt

Beschrijving

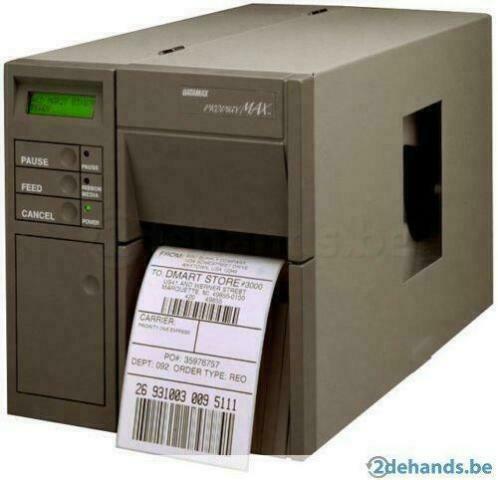

Datamax DMX-800

Parallel + 2x Serial DB25

Incl rewinder + tear off

1064512 Inch printed



Printer type: Thermal Transfer/Direct Thermal
Printing speed: 2" - 5" (51mm - 127mm) per second
Resolution: 300 dpi (11.8 dots/mm)
Bar Code Modulus: 3.3 mil. to 80 mil "X" dimension in picket or
ladder orientations
Maximum Print Width: 8.50" (216mm)
Maximum Media Width: 9.0" (229mm)
Minimum Media Width: 3.00" (76mm)
Maximum Print Length: 8" (203mm) with standard memory 1MB;
up to 64" (1626mm) with optional on-board memory expansion
module
Media Window: Clear side door panel to easily monitor media
supply levels
Media Type: Roll-fed, die-cut, continuous or fan-fold labels, tags or
tickets; most direct thermal or thermal transfer materials
Media Thickness: .0025" to .0100" (.0635mm to .254mm)
Media Sensing: Moveable "see-through" for die-cut labels and
tags; reflective for labels and tags with black stripe sensing
Supply Roll: 8.25" (210mm) maximum diameter on 1.5" to 3" cores
(38mm to 76mm); fan fold stock accepted from rear and bottom of
printer
LCD Display: 3 keys visible at all times for the operator: PAUSE/ON
LINE, FEED, and CANCEL; 6 keys provided behind "door"; 3 LEDs
visible at all times; POWER, PAPER/RIBBON, and PAUSE
Cabinet: Cabinetry of all metal construction
Label Backfeed: For use with peel-off mode in on-demand
applications
Ribbons: Industry-standard ribbon cores: 25mm, 38mm, 51mm,
74mm, 76mm, 89mm, 102mm, 110mm,
1476'' (450m) length
Bar Codes: Code 39, Interleaved 2 of 5, Code 128 (subsets A, B,
and C), Codabar, LOGMARS, UPC-A, UPC-E, UPC 2 and 5 digit
addendums, EAN-8, EAN-13, EAN 2 and 5 digit addendums, UPC
random weight, Code 93, Plessey, Universal Shipping Container
Symbology, Code 128 Mod 43, Postnet, UCC/EAN 128 random
weight, Telepen, UPS Maxicode, FIM, Interleaved 2 of 5 MOD 10,
HIBC and PDF417
Resident Fonts: Nine alpha-numeric fonts from .035"H (.89mm) to
.64" H and OCR-A, OCR-B,
CG Triumvirate from AGFA (in both portrait and landscape)
Character Set: Modified IBM Code Page 850, includes characters
for English and most European, Scandinavian, and Spanish
speaking countries
Font Expansion, Rotation: All fonts expandable vertically and
horizontally up to 24x; fonts can be printed in four directions, 0,
90, 180, 270
Graphics Support: .PCX, .BMP, .IMG files
Reverse Fields: Any font or graphic field can be printed normal or
reverse
Mirror Image: Any font or graphic field can be printed in mirror
Linear Inch Counter: Standard
Time and Date: Standard
Hours of Use/Inches Printed: Standard
Tear Bar: Standard
Head Sensing: Standard
Cartridge Slot: Two PCMCIA Type II styled 32 bit cartridges;
cartridges accessed from the stock door side, but housed at the
rear of the printer
Built-In EPROM: 2MB, expandable to 4MB
Built-In DRAM: 1MB, addressable on board memory expandable to
16MB
Built-In NVRAM: 128K on board non-volatile SRAM

Conditie: Gebruikt
