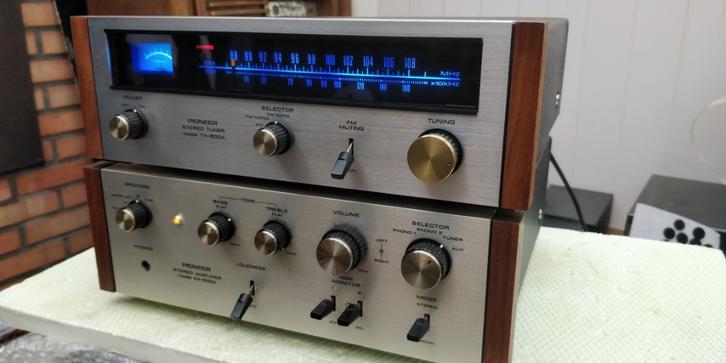

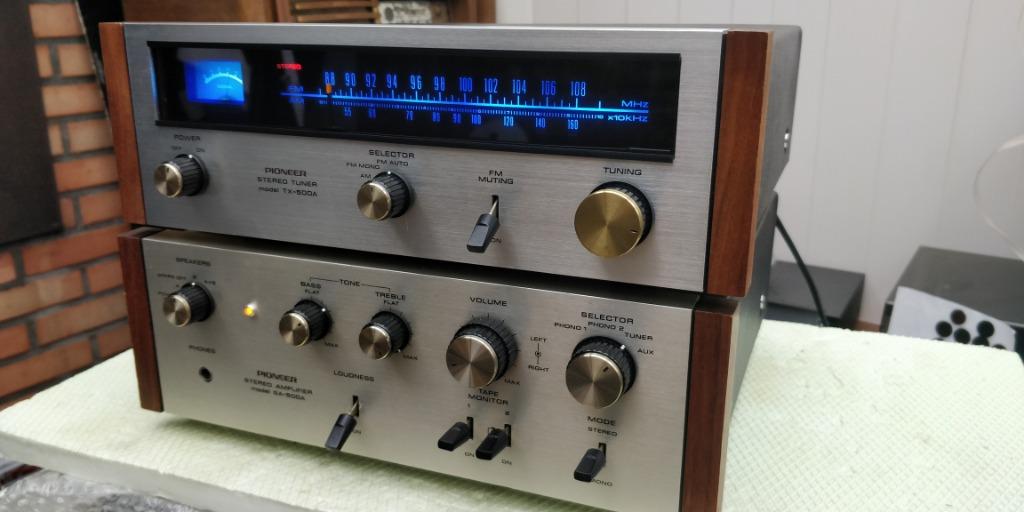

Pioneer SA-500A + TX-500A StereosetAmplifier +Tuner(1971-75)

Ik verkoop alleen als stereoset (versterker + tuner)....Ik verkoop niet afzonderlijk. De stereoset is in goede, originele en volledig werkende staat....alle functies werken perfect .Kan terplaatse beluisterd worden. Bekijk mijn andere zoekertjes

SpecificationsPower output: 13 watts per channel into 8Ω (stereo)
Frequency response: 30Hz to 50kHz
Total harmonic distortion: 0.5%
Damping factor: 40
Input sensitivity: 2.5mV (MM), 200mV (line)
Signal to noise ratio: 75dB (MM), 90dB (line)
Channel separation: 50dB (MM), 55dB (line)
Output: 200mV (line)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 18 x transistors, 6 x diodes
Dimensions: 330 x 118 x 316mm
Weight: 5.5kg

DescriptionThe TX-500A is Pioneer's budget priced FM/MW stereo tuner.
It has a front end with FET and 3 gang variable capacitor and is equipped with a large tuning meter of the signal strength type and a wide linear type dial scale, FM muting switch and separate AM and FM output level controls.
SpecificationsType: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
Sensitivity: 1.8uV (FM), 15uV (MW)
Signal to Noise Ratio: 70dB (FM), 50dB (MW)
Selectivity: 35dB (FM), 22dB (MW)
Output: 600mV (FM)
Dimensions: 330 x 118 x 330mm
Weight: 4.6kg
Year: 1974
