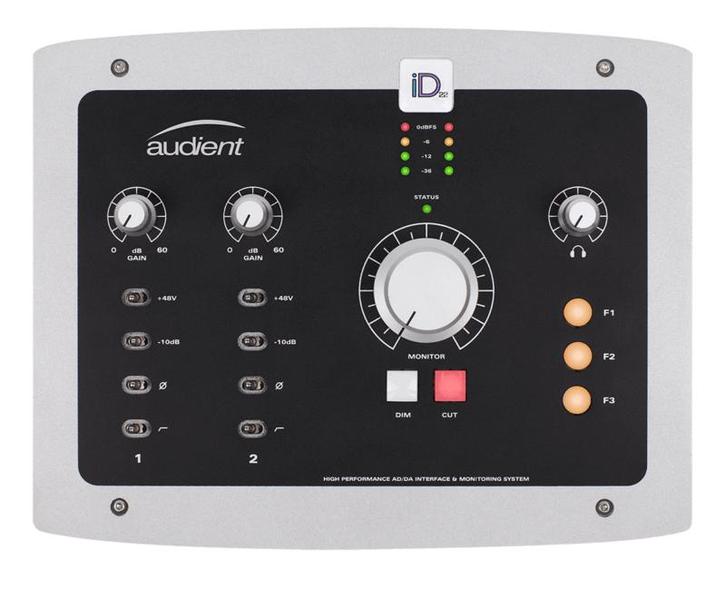

Audient iD 22 | B-stock



Designed for those looking to take the next step up in home recording, the iD22 delivers professional audio performance of an Audient console in a compact and modern desktop package.



Expand via ADAT

More channels, more possibilities

More than just a two in, four out interface, iD22’s digital inputs + outputs give you the option to add up to eight extra mic pre inputs letting you expand your rig and take on larger sessions.



Balanced Inserts

Hardware Integration

Integrate your favourite outboard FX prior to conversion and start creating signal chains that rival the very best. The insert returns also gives you direct access to the A/D converters providing the cleanest signal path possible, making it great for print-backs or integrating outboard line level sources.




Experience ultra low latency

The iD mixer tightly integrates hardware and software, letting you effortlessly create and customise low latency headphone mixes, utilise the flexible monitor control or simply keep an eye on your levels – all from one easy to use app.

Talkback

Innovation meets communication

iD22’s dedicated talkback technology enables you to use any audio source connected to your computer such as a built in or USB microphone as your talkback mic, freeing up valuable mic pres for recording.



Advanced Monitor Control

Work faster

Speed up your workflow with iD22’s three programmable function buttons. Assign any of the advanced monitoring features, including Speaker Select, Mono Sum, Talkback or Cue Mix monitoring, to any of the F-buttons and experience customisable hardware control at your fingertips.

Specifications



• MIC GAIN:
• LINE GAIN:
• PHANTOM POWER:
• MIC EIN:
• CMRR:
• MAXIMUM INPUT LEVEL:
• INPUT IMPEDANCE (Mic):
• INPUT IMPEDANCE (Line):
• FREQUENCY RESPONSE:
• CROSSTALK:
• THD+N @ 0dBu (1kHz):
• SNR:
• Pad:
• HPF:
• XLR:
• 1/4” JACK:



• 10 to +60 dB (-10dB Pad)
• -20 to +40 dB (-10dB Pad)
• 48v +/-4v @ 10mA/Channel
• <-126dBu
• >80dB @ 1kHz
• +22dBu (+32dBu with Pad)
• >3k Balanced
• >10k Balanced
• +/-0.5dB 10Hz to 100kHz
• <-90dBu @ 1kHz & 10kHz
• 0.0015% (-96dBu)
• 96dB
• -10dB
• -3dB @ 100Hz, 2nd Order (12dB/Octave)
• Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
• TIP (Hot), RING (Cold) & SLEEVE (Shield)
